DLOGIC DM range

Web Terminals & Panel PCs

Linux-ready capacitive touch display computers from 4.3″ to 49″ — designed in-house, ruggedised for your environment, and supplied for years. Adapt a standard unit or start a bespoke design.

start a new project / order a sample
TRY OUR PRODUCT BUILDER

Make it yours - DLOGIC

A standard product is the starting point.

Change the mechanics, optics, interfaces and software to fit your application. This is where most projects go.

  • Mounting & dimensions
  • Interfaces & connectors
  • Brighter backlight
  • Custom cover glass
  • Capacitive buttons
  • ClearBond bonding

THE DLOGIC RANGE

Find your starting point

Complete sunlight-readable touch monitors driven by your host system — the DLOGIC DL-DM-HDMI series, with PCAP touch and optional optical bonding and front or rear 4 mm safety-glass mount for industrial, marine and outdoor use.

Software & platforms

DLOGIC Linux Platform

The DLOGIC value proposition pairs world-class software with the DL-DM hardware in a ready-to-install product — a Linux board-support package spanning the entire touch-computer range, so an application written once runs on any size or version.

LINUX - DEBIAN - UBUNTU - YOCTO - QT5/QT6 - JAVA - FLUTTER - CHROMIUM - HTML5 - CODESYS - .NET / MONO

Software Platform & Board Support

Linux runs across the whole DL-DM range for reliability and stability. Every unit ships pre-installed with GUI support built on QT, Java, HTML5 and CODESYS.

  • Linux-based BSP across the entire product range
  • Debian distribution with full package-repository access
  • Driver support for all interfaces; VPU hardware video encode/decode
  • QT5 or QT6 runtimes, Java option, HTML5 browser, Mono/.Net

Development System

Offered as a kit — the starting point for application development on DLOGIC touch computers. A desktop Linux VM mirrors the device platform with cross-compilers and IDE, so you build on host and target from day one.

  • DL-DM device of your choice with pre-installed BSP + connector board
  • Debian distribution with full package-repository access
  • Driver support for all interfaces; VPU hardware video encode/decode
  • QT5 or QT6 runtimes, Java option, HTML5 browser, Mono/.Net

LINUX - DEBIAN - UBUNTU - YOCTO - QT5/QT6 - JAVA - FLUTTER - CHROMIUM - HTML5 - CODESYS - .NET / MONO

Platform support · q-series

Debian 11 GuiApp BSP

QT5 · Java · .Net/Mono

Debian 12 GuiApp BSP

QT5 · Java · .Net/Mono

Ubuntu 22.02

QT5 · Flutter

Yocto 5.15 Kirkstone Webterm

Chromium · node/npm · QT6

Yocto 5.15 Kirkstone GuiApp BSP

QT5 w/ QtWebEngine

Yocto 5.15 Kirkstone GuiApp BSP

QT6 w/ QtWebEngine

Yocto 6.1 Mickledore GuiApp BSP

QT5 w/ QtWebEngine

Yocto 6.6 Scarthgap Webterm

Chromium · node/npm · QT6

Yocto 6.6 Scarthgap GuiApp BSP

QT6 w/ QtWebEngine

Software & platforms - Logic Technologies

LogicUX Embedded GUI Software tools for 32-bit MCUs

LogicUX builds stunning graphical interfaces on any embedded 32-bit MCU and touch screen — driven over API or serial. Teams typically cut GUI development time by more than 70%, with a short learning curve and ultra-fast rendering: production-ready interfaces in weeks, not months.

LogicUX Designer

A PC authoring tool where you compose screens from a Four-Box System and custom widgets, then skin, translate and tune them.

  • !
    Custom widgets and a skin system for instant re-branding
  • !
    Multi-language integration with font import and character-set trimming
  • !
    Audio-mapped touch interactions and an on-screen keyboard designer

Embedded Components

What runs on your target MCU — data and a tiny precompiled library, not source you have to maintain.

  • !
    Graphics Resources — flashed to the device; swap branding, fonts, strings, audio and skins without re-validating firmware (~256 kB–16 MB, internal or QSPI flash)
  • !
    Embedded Library — static, fully-optimised C library, ~32 kB flash with every feature on; micro-scheduler under 200 lines; API or UART/serial; any OS or none; hardware graphics acceleration
  • !
    Embedded Library — static, fully-optimised C library, ~32 kB flash with every feature on; micro-scheduler under 200 lines; API or UART/serial; any OS or none; hardware graphics acceleration
  • !
    Application — same-CPU (API) or separate-CPU (serial display), ~100–300 kB compiled, with IDE sample projects and tutorials

LogicUX in Action

Smooth scrolling lists
Live line graphs
Appliance control UI
Color Picker
On screen keyboard
Animated bar meters

Software & development

Get to market on a head start.

Every unit ships with a board support package and runs Qt, Java, HTML5 and CODESYS. Our development kit puts you on production-ready hardware from day one.

REQUEST A DEVELOPMENT KIT

In the field

The DM range, deployed.

Real installations from the Logic Technologies brochure — across marine, industrial, vending and off-highway environments.

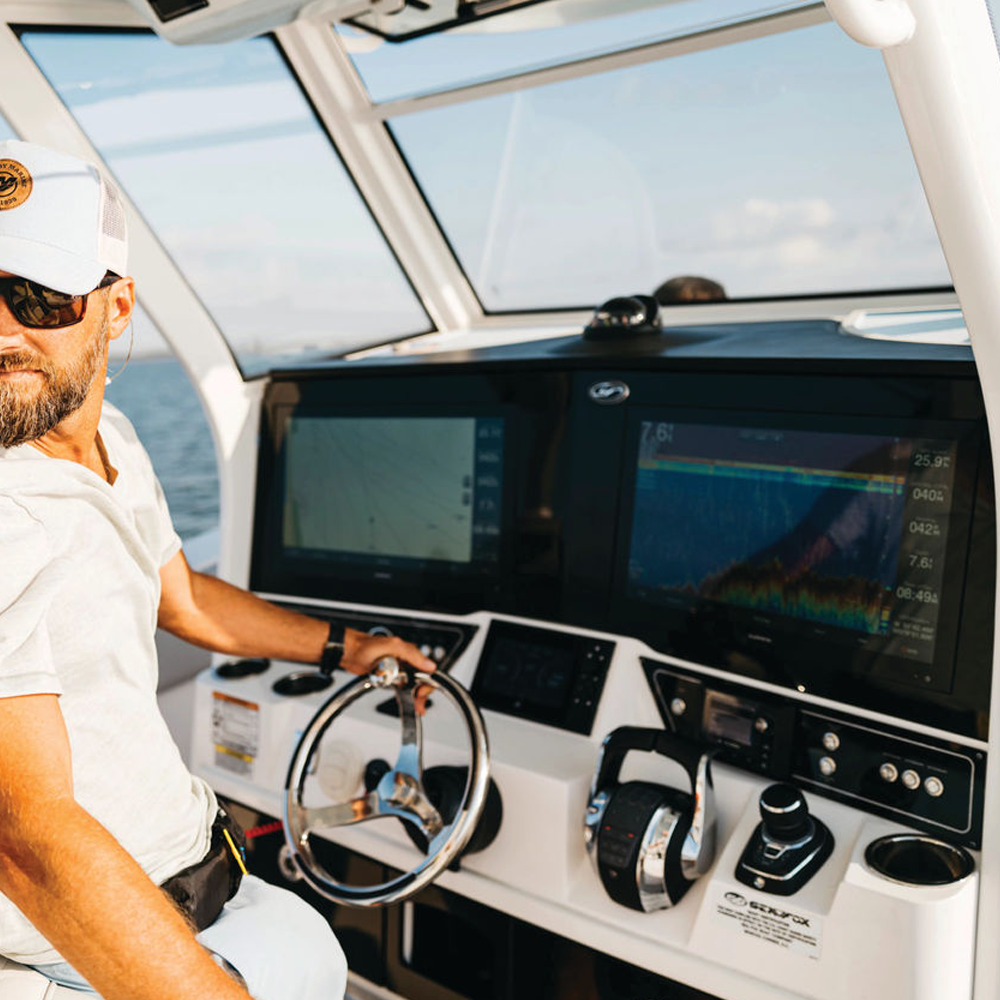

Marine system controller

Industrial machinery HMI

Outdoor vending terminal

Off-highway cab control

In production

$

DL-DM2400-DP-SGR

24.0″ · EV charging station

IK10 vandal-resistant, dual-laminated 6 mm safety glass, anti-reflective, 1200-nit backlight, fanless.

$

DL-DM3150-DP-SGR

31.5″ · Fast-food drive-through

Rear-mounted 6 mm safety-glass touch terminal for outdoor customer ordering.

$

DL-DM700x-SGR

7.0″+ · Rear-mount series

4 mm safety glass, rear-mounted and flush within the door frame for a sealed, modern front face.
